MAX2031 is a high-linearity passive upconverter or downconverter mixer from Texas Instruments, designed to provide +36dBm IIP3, 7dB NF, and 7dB conversion loss for an 815MHz to 1000MHz RF frequency range to support GSM/cellular base-station transmitter or receiver applications.

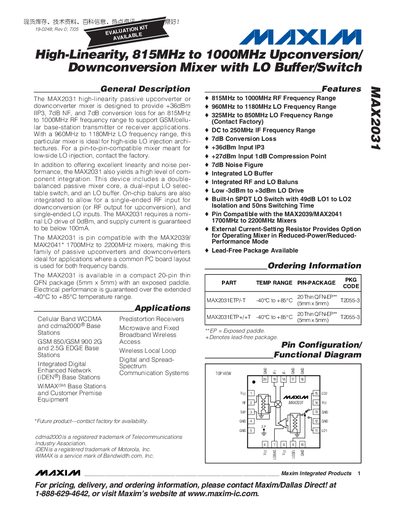

The MAX2031 is a high‑linearity passive up‑converter or down‑converter mixer designed for GSM, CDMA, WCDMA, iDEN, WiMAX and other cellular base‑station applications. It operates over an RF range of 815 MHz to 1000 MHz with a 960 MHz to 1180 MHz LO range for high‑side injection, and includes an integrated LO buffer, SPDT LO switch, and on‑chip baluns.
Key specifications include +36 dBm IIP3, 7 dB conversion loss, 7 dB noise figure, and a supply current below 100 mA. The device is offered in a 20‑pin thin QFN package (5 mm × 5 mm) with an exposed paddle and is rated for –40 °C to +85 °C operation. Ordering information and detailed electrical characteristics are provided for designers.
| RF Frequency Range | 815 MHz – 1000 MHz |
|---|---|
| Conversion Loss (downconverter) | 7 dB |
| Conversion Loss (upconverter) | 7.4 dB |
| Input Third‑Order Intercept Point (IIP3) | +36 dBm |
| Noise Figure | 7 dB |
| Supply Voltage | 4.75 V – 5.25 V |
| Supply Current | ≤ 100 mA |
| Package | 20‑pin thin QFN, 5 mm × 5 mm, exposed paddle |
| Operating Temperature Range | -40 °C to +85 °C |
The MAX2031 operates from 815 MHz to 1000 MHz.
The device draws up to 100 mA supply current.
It is offered in a 20‑pin thin QFN package (5 mm × 5 mm) with an exposed paddle.
The downconverter conversion loss is 7 dB.
