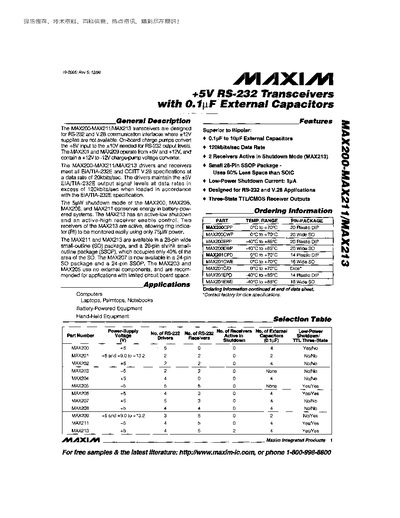

This datasheet describes the MAX200, MAX211 and MAX213 5 V RS‑232 transceivers, which use on‑board charge‑pump converters to generate the +10 V RS‑232 output levels when only a +5 V supply is available. The devices meet EIA/TIA‑232E and CCITT V.28 specifications and support data rates up to 120 kbps.
The document includes application examples, detailed electrical characteristics, absolute maximum ratings, package options, ordering information, and shutdown/enable control behavior. It also provides typical operating curves and pin‑configuration tables for designers.
| Maximum Data Rate | 120 kbps |
|---|---|
| Shutdown Supply Current | 1 pA |
| Package Options | 28‑pin SO and 28‑pin SSOP (also 24‑pin SO/SSOP) |
| Operating Temperature Range | -40 °C to +85 °C |
| Supply Voltage Conversion | +5 V input converted to +10 V output |
The devices support data rates up to 120 kbps.
The MAX213 has a low‑power shutdown current of 1 pA.
Both parts are offered in a 28‑pin wide small‑outline (SO) package and a 28‑pin shrink small‑outline (SSOP) package.
