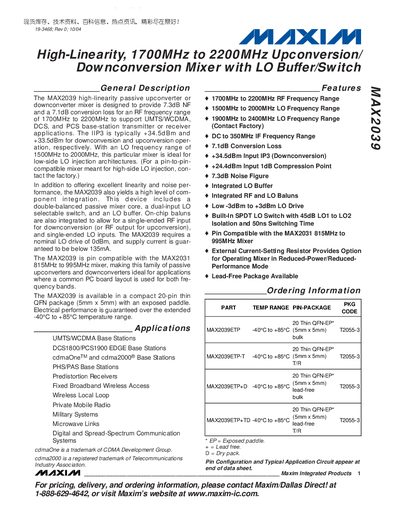

The MAX2039 is a high-linearity passive upconverter or downconverter mixer designed to provide 7.3 dB NF and a 7.1 dB conversion loss for an RF frequency range of 1700MHz to 2200MHz to support UMTS/WCDMA, DCS, and PCS base-station transmitter or receiver applications. The IIP3 is typically +34.5 dBm and +33.5 dBm for downconversion and upconversion operation, respectively. With an LO frequency range of 1500MHz to 2000MHz, this particular mixer is ideal for low-side LO injection architectures. (For a pin-to-pin-compatible mixer meant for high-side LO injection, contact the factory.)
The MAX2039 is a passive upconverter/downconverter mixer designed for UMTS/WCDMA, DCS, PCS, and other base‑station applications. It offers a 7.3 dB noise figure, 7.1 dB conversion loss, and high linearity with IIP3 around +34.5 dBm.
The device is supplied in a compact 20‑pin thin QFN‑EP package (5 mm × 5 mm) and operates from a 4.75 V‑5.25 V supply with a typical supply current of 135 mA. Integrated features include a double‑balanced mixer core, LO buffer, SPDT LO switch, and on‑chip baluns for single‑ended RF and LO ports.
| RF Frequency Range | 1700 MHz – 2200 MHz |
|---|---|
| LO Frequency Range | 1500 MHz – 2000 MHz (up to 2400 MHz on request) |
| Conversion Loss | ≈ 7.1 dB |
| Noise Figure | 7.3 dB |
| Input IP3 (Downconversion) | +34.5 dBm |
| Supply Voltage (VCC) | 4.75 V – 5.25 V |
| Supply Current (Icc) | Up to 135 mA |
| LO Drive Level | -3 dBm to +3 dBm |
| Package | 20‑pin thin QFN‑EP (5 mm × 5 mm) |
The MAX2039 operates from 1700 MHz to 2200 MHz.
The typical conversion loss is about 7.1 dB.
It requires a supply voltage between 4.75 V and 5.25 V.
The device is offered in a 20‑pin thin QFN‑EP package measuring 5 mm × 5 mm.
