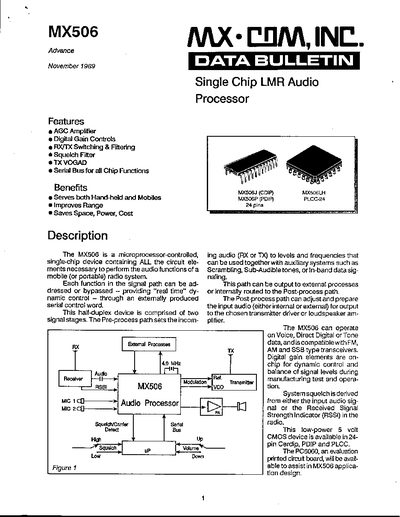

The MX506 is a microprocessor‑controlled single‑chip LMR audio processor designed for handheld and mobile radio systems. It integrates all necessary audio functions, offering digital gain control, AGC, squelch, and serial‑bus configuration.
This manual provides a description of the device, pin‑function charts, serial control bit definitions, layout recommendations, and detailed notes on the internal signal paths, making it a comprehensive guide for designers and technicians.
| Package Types | PDIP, PLCC‑24 |
|---|---|
| Pin Count | 24 pins |
| Supply Voltage | +5 V |
| Serial Data Width | 47‑bit |
| Operating Modes | Voice, Direct Digital, Tone |
The MX506 requires a single, stable +5 V supply.
The device is available in a 24‑pin package.
