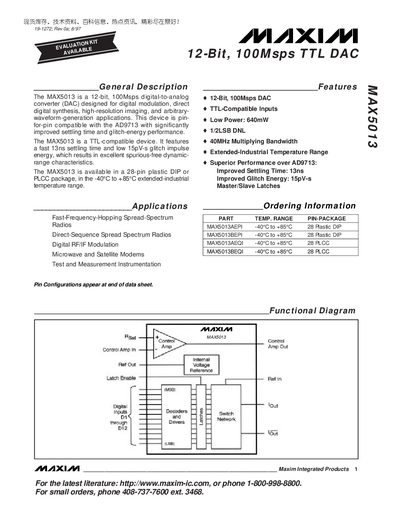

The MAX5013 is a 12-bit, 100Msps digital-to-analog converter (DAC) designed for digital modulation, direct digital synthesis, high-resolution imaging, and arbitrary-waveform-generation applications. This device is pin-for-pin compatible with the AD9713 with significantly improved settling time and glitch-energy performance. The MAX5013 is a TTL-compatible device. It features a fast 13ns settling time and low 15pV-s glitch impulse energy, which results in excellent spurious-free dynamic-range characteristics. The MAX5013 is available in a 28-pin plastic DIP or PLCC package, in the -40°C to +85°C extended-industrial temperature range.
The MAX5013 is a 12‑bit, 100 Msps digital‑to‑analog converter designed for high‑resolution imaging, digital modulation, and arbitrary waveform generation. It offers TTL‑compatible inputs, low power consumption (640 mW), and an extended‑industrial temperature range.
The device is available in 28‑pin plastic DIP and PLCC packages and includes detailed electrical characteristics, pin descriptions, and package dimensions for system integration.
| Resolution | 12 bits |
|---|
