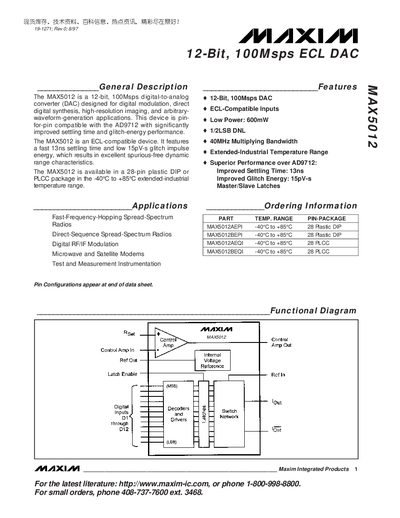

The MAX5012 is a 12-bit, 100Msps digital-to-analog converter (DAC) designed for digital modulation, direct digital synthesis, high-resolution imaging, and arbitrary- waveform-generation applications. This device is pin- for-pin compatible with the AD9712 with significantly improved settling time and glitch-energy performance. The MAX5012 is an ECL-compatible device. It features a fast 13ns settling time and low 15pV-s glitch impulse energy, which results in excellent spurious-free dynamic range characteristics. The MAX5012 is available in a 28-pin plastic DIP or PLCC package in the -40°C to +85°C extended-industrial temperature range.
The MAX5012 is a 12‑bit, 100 Msps digital‑to‑analog converter (DAC) designed for high‑speed applications such as digital modulation, direct digital synthesis, high‑resolution imaging, and arbitrary‑waveform generation. It is ECL‑compatible, offers a fast 13 ns settling time, and low 15 pV·s glitch energy, providing excellent spurious‑free dynamic range.
The device is available in a 28‑pin plastic DIP or PLCC package and operates from –40 °C to +85 °C. Detailed electrical characteristics, pin descriptions, and package dimensions are provided for both DIP and PLCC options.
| Resolution | 12 bits |
|---|---|
| Nominal Power Dissipation | 600 mW |
| Multiplying Bandwidth | 40 MHz |
| Operating Temperature Range | -40 °C to +85 °C |
Its nominal power dissipation is 600 mW.
