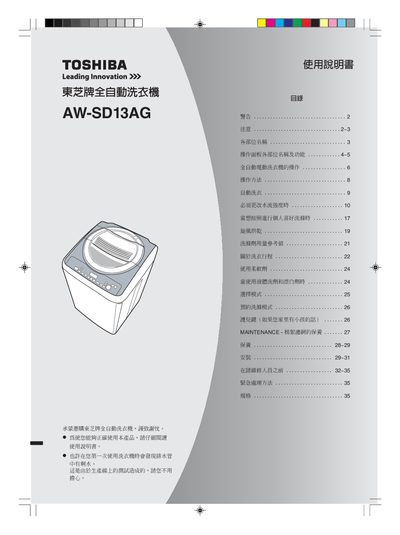

This document is a user manual for Toshiba brand fully automatic washing machine. It introduces the various parts and functions of the washing machine, operation methods, washing and drying functions, detergent dosage, reservation washing mode, etc.
This manual begins with safety warnings and precautions for the Toshiba AW‑SD13AG fully‑automatic washing machine, emphasizing the need to keep children away from the drum, to unplug the unit before any service, and to avoid using damaged power cords or placing the machine near fire sources.
It then details the installation requirements, water‑supply and drain connections, operation panel functions, wash programs, and troubleshooting tips. The final sections list the technical specifications such as power supply, water pressure, dimensions, weight, and standard water consumption. This manual is written in Chinese.
| Power Supply | 110 V, 60 Hz |
|---|---|
| Water Pressure | 0.03–1 MPa |
| Dimensions (W×D×H) | 685 mm × 685 mm × 1088 mm |
| Weight | 50 kg |
| Standard Wash Cycle Time | 75 min |
| Standard Water Volume (high level) | 98 L |
| Standard Water Consumption | 226 L |
Do not allow children or weak persons to operate the washing machine, keep children away from the drum, unplug the unit before any service, and never place the machine near fire sources.
Connect the water‑supply hose securely, ensure the drain pipe is not blocked, place the machine on a level floor, avoid installing it in a bathroom or exposed to rain, and do not move the unit horizontally or invert it.
The machine requires a 110 V, 60 Hz power supply.
The unit measures 685 mm wide, 685 mm deep, and 1088 mm high.
