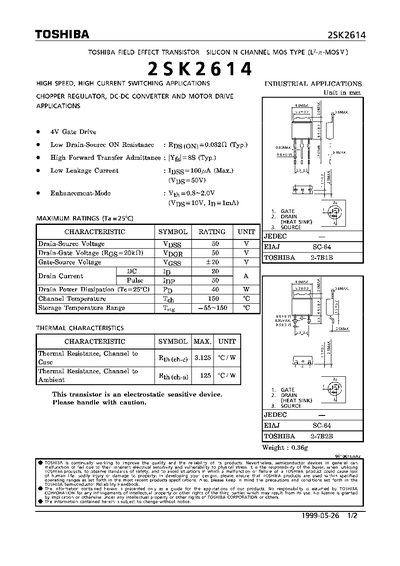

The 2SK2614 is a high‑speed, high‑current N‑channel MOSFET designed for chopper regulator, DC‑DC converter, motor‑drive and other industrial applications. It offers low on‑resistance and fast switching performance.
Key specifications include a 50 V gate‑source rating, 20 A maximum drain current, typical on‑resistance of 0.032 Ω, and a power dissipation capability of 40 W. The device operates over a storage temperature range of –55 °C to 150 °C and includes thermal resistance values for proper heat‑sink design. Handling cautions are noted due to the electrostatic sensitivity of the transistor.
| Storage Temperature Range | -55 °C to 150 °C |
|---|---|
| Thermal Resistance, Channel‑to‑Case (RθJC) | 3.125 °C/W |
It can be stored from –55 °C up to 150 °C.
