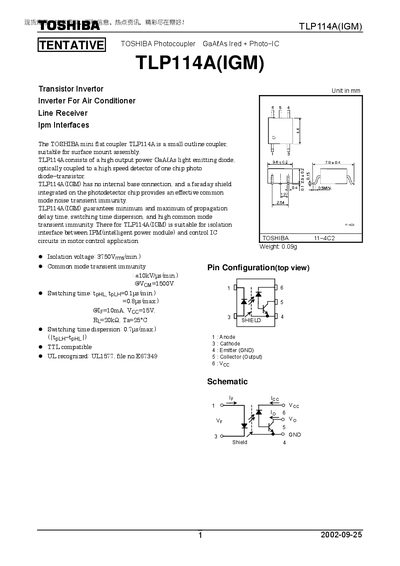

TLP114A(IGM) is a photocoupler produced by Toshiba. It is suitable for isolation interface between IPM(intelligent power module) and control IC circuits in motor control application.
The TLP114A(IGM) is a miniature GaAs photocoupler designed for surface‑mount assembly. It combines a high‑output power infrared LED with a fast photodiode‑transistor detector, offering isolation up to 3750 Vrms and strong common‑mode transient immunity.
The document lists maximum ratings, detailed electrical and switching characteristics, test circuit diagrams, and important product‑use restrictions, helping designers integrate the device safely into motor‑control, power‑module, and general electronics applications.
| Output current (lo) | 8 mA |
|---|
