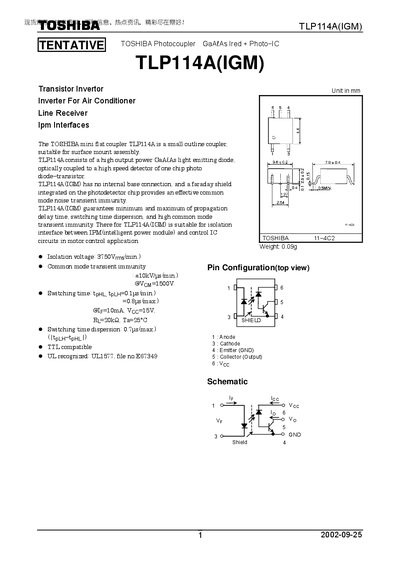

TLP114A(IGM) is a TOSHIBA mini flat coupler, suitable for surface mount assembly. It consists of a high output power GaAℓAs light emitting diode and a high-speed detector of a photo diode-transistor. TLP114A(IGM) is suitable for isolation interface between IPM (intelligent power module) and control IC circuits in motor control applications.
The TLP114A(IGM) is a miniature GaAs infrared/photodiode photocoupler designed for surface‑mount assembly. It features a high‑output LED, a fast detector, and a built‑in Faraday shield for excellent common‑mode noise immunity, making it suitable for isolation in motor‑control and power‑module applications.
The document lists maximum ratings, detailed electrical and switching characteristics, test circuit diagrams, and safety restrictions. It also includes recommended operating temperature ranges, isolation voltage limits, and notes on handling and reliability for general electronics use.
| Forward current (continuous) | 20 mA |
|---|---|
| Output current (low level) | 8 mA |
| Operating temperature range | -55 °C to 100 °C |
It operates from –55 °C up to 100 °C.
Yes, it is not intended for safety‑critical or high‑reliability applications such as medical, aerospace, or traffic‑signal equipment.
