TLP115 is a high-performance optical isolator produced by Toshiba. It has the characteristics of high isolation voltage, high switching speed, low power consumption, small size, and easy to use. It is mainly used in microprocessor system interfaces, digital isolation, A/D, D/A conversion, computer peripheral interfaces and ground loop elimination.
The TLP115 is a miniature surface‑mount photocoupler that combines a GaAs infrared LED with a high‑gain, high‑speed shielded photodetector. It provides digital isolation for A/D and D/A conversion, computer‑peripheral interfaces, and ground‑loop elimination.

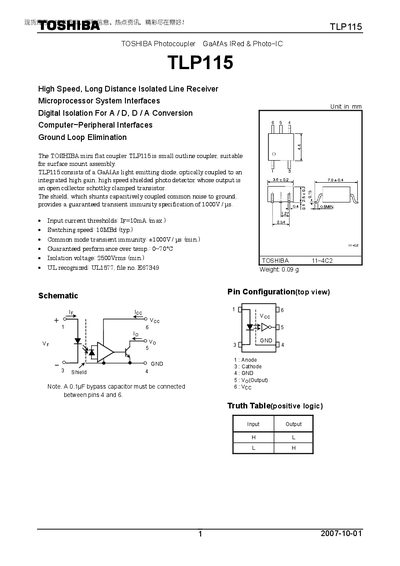

The document lists absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, pin configuration, test circuits, and usage restrictions for reliable design of electronic systems.
| Isolation voltage (min) | 2500 Vrms |
|---|---|
| Forward current (absolute max) | 20 mA |
| Input current threshold (Ir, max) | 10 mA |
| Output current (low level) | 25 mA |
The device provides a minimum isolation voltage of 2500 Vrms.
The recommended supply voltage (VCC) is 4.5 V to 5.5 V.
The absolute maximum forward current is 20 mA; the typical operating range is 10 mA to 16 mA.
