TLP116 is a photocoupler produced by TOSHIBA. It is applied in A/D, D/A conversion, high-speed line receiver, microprocessor system interface and plasma display panel.
The Toshiba TLP116 is a GaAs LED and high‑gain photodetector optocoupler packaged in an MFSOP6 2.54 mm case. It provides digital isolation for A/D, D/A conversion, microprocessor interfaces, and other high‑speed applications.

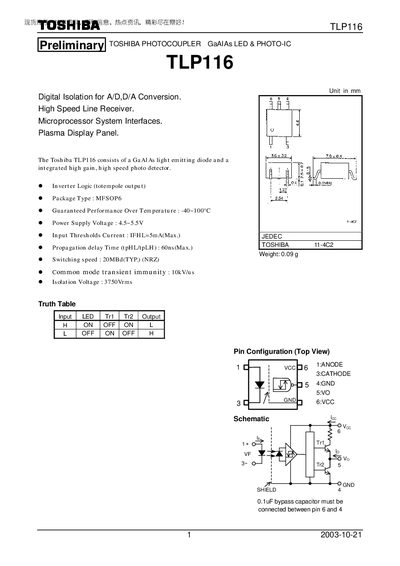

The document lists recommended operating conditions, maximum ratings, electrical characteristics, isolation performance, and switching specifications, along with handling precautions and usage restrictions.
| Isolation Voltage | 3750 Vrms |
|---|---|
| Supply Voltage | 4.5 V – 5.5 V |
| Input Current (ON) | 8 – 18 mA |
| Propagation Delay Time | 60 ns (max) |
| Switching Speed | 20 MBd (typ) |
| Package Type | MFSOP6 2.54 mm |
| Operating Temperature Range | -40 °C – 100 °C |
| Common Mode Transient Immunity | 10 kV/µs |
| Weight | 0.09 g |
The TLP116 is rated for an isolation voltage of 3750 Vrms.
A supply voltage between 4.5 V and 5.5 V is recommended.
The typical propagation delay (tpHL/tpLH) is up to 60 ns.
The device operates from –40 °C to +100 °C.
