TLP115A is a high performance optical coupler produced by Toshiba. It features high output power, high switching speed, high anti-interference ability, and is suitable for microprocessor system interfaces, digital isolation and other fields.

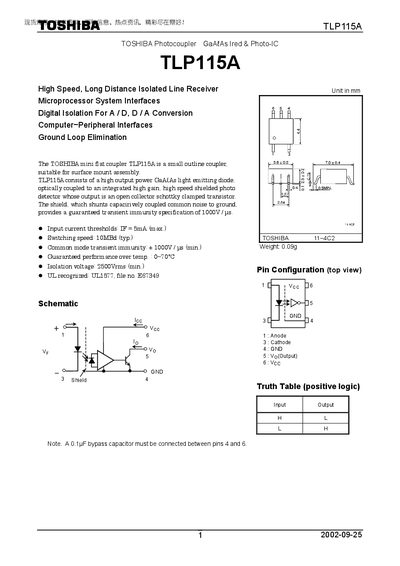

The TLP115A is a miniature surface‑mount photocoupler that combines a high‑output‑power GaAs LED with a shielded high‑gain photo‑detector. It provides fast switching (typ. 10 MBd) and strong common‑mode transient immunity (1000 V/µs) for digital isolation in microprocessor and computer‑peripheral interfaces.
The device is rated for 2500 Vrms isolation, 20 mA forward current, and operates from a 4.5‑5.5 V supply. It is suitable for applications such as A/D and D/A conversion isolation, ground‑loop elimination, and high‑speed data lines in industrial and consumer electronics.
| Isolation voltage (AC, 1 min) | 2500 Vrms (min) |
|---|---|
| Input current threshold (IF) | 5 mA (max) |
| Switching speed | 10 MBd (typ) |
The device provides a minimum isolation voltage of 2500 Vrms for AC operation.
The maximum forward current is 20 mA.
The device operates from –40 °C to +85 °C.
