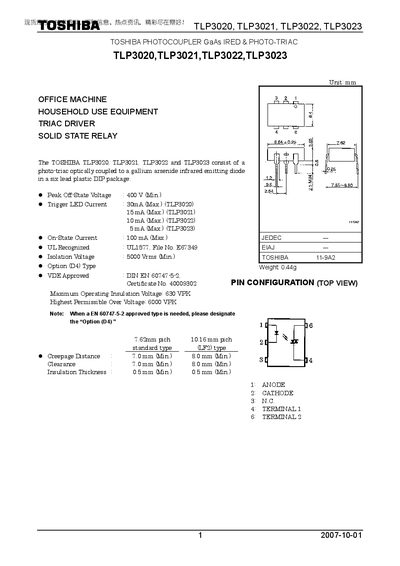

The TLP3020‑3023 family are solid‑state relays that combine a gallium‑arsenide infrared emitting diode with a photo‑triac in a six‑lead DIP package. They are intended for general electronics applications such as computers, office equipment, measuring devices, industrial robotics and domestic appliances.
The document provides absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, as well as usage restrictions and safety notes for designers.
| Isolation Voltage | 5000 Vrms (Min.) |
|---|---|
| On‑State Current | 100 mA (Max.) |
| Supply Voltage | 120 Vac |
| Forward Voltage (IF=10 mA) | 1.0‑1.3 V |
| Peak Off‑State Current | 100 nA |
The device is rated for an isolation voltage of 5000 Vrms (minimum).
The recommended supply voltage is 120 Vac.
The maximum on‑state current is 100 mA.
The recommended operating temperature range is –25 °C to 85 °C.
