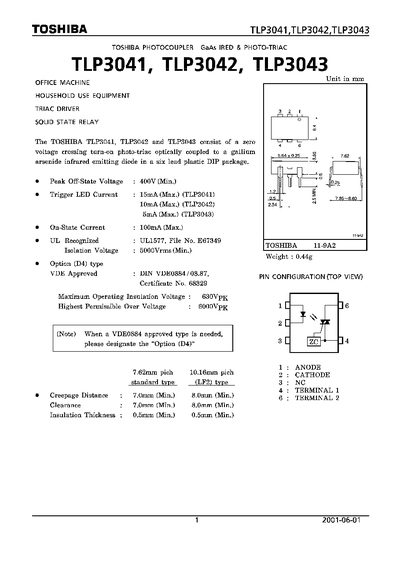

The Toshiba TLP3041, TLP3042 and TLP3043 are solid‑state relay devices that combine a zero‑voltage‑crossing photo‑triac with a GaAs infrared emitting diode in a six‑lead DIP package. They are intended for general electronics applications such as office machines, household equipment, and industrial robotics.
Key electrical ratings include a peak off‑state voltage of 400 V, on‑state current of 100 mA, isolation voltage of 5 kV rms, and operating temperature range from –40 °C to 100 °C. The devices are UL1577 recognized and meet VDE0884 safety standards when the optional D4 type is selected.
| Peak Off‑State Voltage | 400 V (Min.) |
|---|---|
| On‑State Current | 100 mA (Max.) |
| Isolation Voltage | 5000 Vrms (Min.) |
| Forward Current (Ip) | 50 mA |
| Power Dissipation (Pp) | 100 mW |
| Storage Temperature Range | -55 °C to 150 °C |
| Operating Temperature Range | -40 °C to 100 °C |
| Supply Voltage | 120 Vac |
| UL Recognition | UL1577, File No. E67349 |
The peak off‑state voltage is 400 V minimum.
The devices are rated for operation from –40 °C to 100 °C.
Yes, they are UL1577 recognized (File No. E67349).
The maximum on‑state current is 100 mA.
