TLP3041(S),TLP3042(S),TLP3043(S) are Toshiba photocoupler products, which consist of a gallium arsenide infrared emitting diode and a photo-triac for optically coupling. They feature zero voltage crossing turn-on, 400V peak off-state voltage, and a maximum on-state current of 100mA.

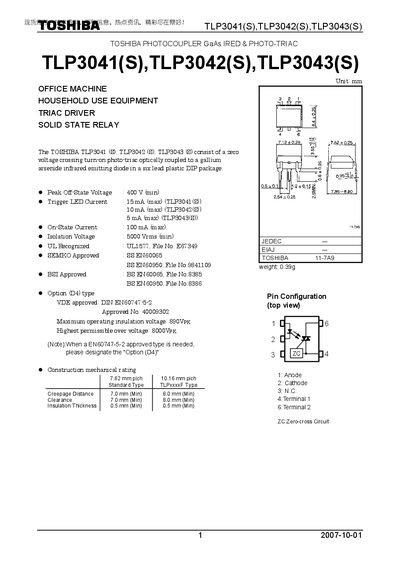

The Toshiba TLP3041(S), TLP3042(S) and TLP3043(S) are zero‑voltage‑crossing photo‑triac optocouplers packaged in a six‑lead DIP. They combine a gallium‑arsenide infrared LED with a triac driver for use in office machines, household equipment, and general electronics.
The document provides absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, pin configuration, and usage restrictions. It also includes mechanical dimensions, creepage and clearance distances, and safety notes for reliable system design.
| Peak Off‑State Voltage | 400 V (min) |
|---|---|
| On‑State Current | 100 mA (max) |
| Isolation Voltage | 5000 Vrms (min) |
| Weight | 0.39 g |
| Package Pitch | 7.62 mm × 10.16 mm |
| Creepage Distance | 7.0 mm (min) |
| Clearance | 7.0 mm (min) |
| Insulation Thickness | 0.5 mm (min) |
| Recommended Operating Temperature | -25 °C to 85 °C |
The isolation voltage is specified as 5000 Vrms (min).
The recommended operating temperature range is from –25 °C to 85 °C.
The package has a pitch of 7.62 mm by 10.16 mm.
