This datasheet is for TLP3020,TLP3021,TLP3022,TLP3023 datasheet, mainly contains the product's package, pin, rated voltage, trigger LED current, maximum operating current, insulation voltage and other information.

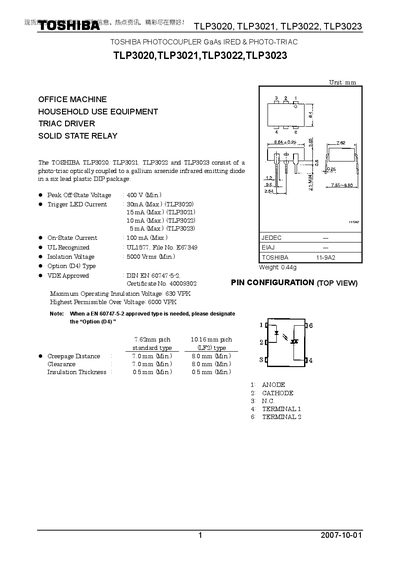

The TLP3020, TLP3021, TLP3022 and TLP3023 are solid‑state relay photo‑triacs optically coupled to a gallium‑arsenide infrared emitting diode in a six‑lead DIP package. They are intended for general electronics applications such as office equipment, computers, measuring devices and industrial robotics.
The document provides absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, as well as restrictions on product use and handling guidelines.
| Isolation Voltage (minimum) | 5000 Vrms |
|---|---|
| On‑State Current (maximum) | 100 mA |
| Forward Current IF (TLP3020, max) | 80 mA |
| Forward Current IF (TLP3021, max) | 15 mA |
| Forward Current IF (TLP3022, max) | 10 mA |
| Forward Current IF (TLP3023, max) | 5 mA |
| Recommended Operating Temperature Range | -25 °C to 85 °C |
The device is rated for at least 5000 Vrms isolation voltage.
The recommended operating temperature range is –25 °C to 85 °C.
