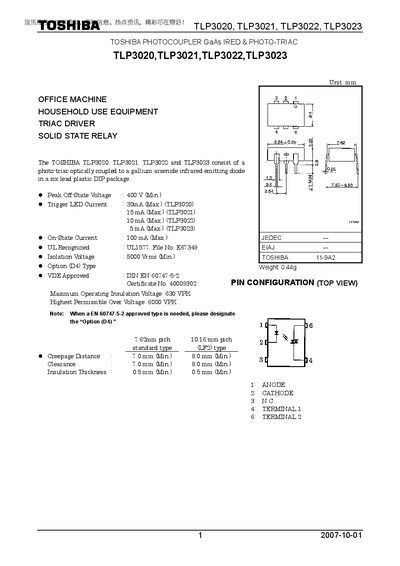

TLP3020, TLP3021, TLP3022, TLP3023 are TOSHIBA photocouplers that consist of a photo-triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
The TLP3020, TLP3021, TLP3022 and TLP3023 are photo‑triac devices optically coupled to a gallium arsenide infrared emitting diode, packaged in a six‑lead plastic DIP. They are intended for general electronics applications such as computers, office equipment, measuring equipment, industrial robotics and domestic appliances.
The datasheet provides absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics including isolation voltage, forward current, supply voltage, and temperature ranges. It also outlines restrictions on product use and handling precautions for reliable design.
| Isolation Voltage | 5000 Vrms (Min.) |
|---|---|
| Forward Current (TLP3020) | 80 mA (Max.) |
| On‑State Current | 100 mA (Max.) |
| Supply Voltage | 120 Vac |
| Forward Voltage (IF=10 mA) | 1.15 V (typical) |
The device provides a minimum isolation voltage of 5000 Vrms.
A supply voltage of 120 Vac is specified.
