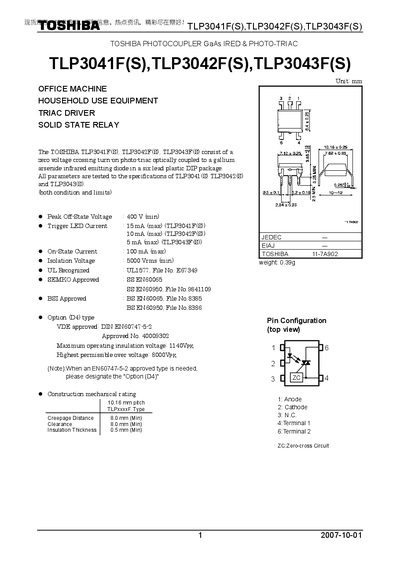

TLP3041F(S),TLP3042F(S),TLP3043F(S) are optical couplers produced by Toshiba. The product consists of a zero voltage crossing turn-on photo-triac and a gallium arsenide infrared emitting diode. The product has the characteristics of high peak off-state voltage, high trigger LED current, high on-state current and high insulation voltage.
The Toshiba TLP3041F(S), TLP3042F(S) and TLP3043F(S) are GaAs infrared LED phototriac optocouplers packaged in a six‑lead DIP. They provide zero‑voltage‑crossing turn‑on and include detailed electrical parameters such as peak off‑state voltage, trigger LED current, on‑state current and isolation voltage.
The devices are approved to several safety standards (UL1577, VDE DIN EN60747‑5‑2, EN60065, EN60950) and have mechanical ratings for creepage, clearance and insulation thickness. Usage restrictions are noted, advising against deployment in safety‑critical or high‑reliability applications such as aerospace, medical or traffic control equipment.
| Peak Off-State Voltage | 400 V (min) |
|---|---|
| Trigger LED Current (TLP3041F(S)) | 15 mA (max) |
| Trigger LED Current (TLP3042F(S)) | 10 mA (max) |
| Trigger LED Current (TLP3043F(S)) | 5 mA (max) |
| On-State Current | 100 mA (max) |
| Isolation Voltage | 5000 Vrms (min) |
| UL Recognition | UL1577, File No. E67349 |
| VDE Approval | DIN EN60747‑5‑2 |
| Maximum Operating Insulation Voltage | 1140 Vpk |
| Creepage Distance | 8.0 mm (Min) |
| Clearance | 8.0 mm (Min) |
| Insulation Thickness | 0.5 mm (Min) |
The peak off‑state voltage is 400 V minimum.
TLP3041F(S) requires up to 15 mA, TLP3042F(S) up to 10 mA, and TLP3043F(S) up to 5 mA (maximum values).
They are UL1577 listed, VDE approved to DIN EN60747‑5‑2, and meet EN60065 and EN60950 requirements.
