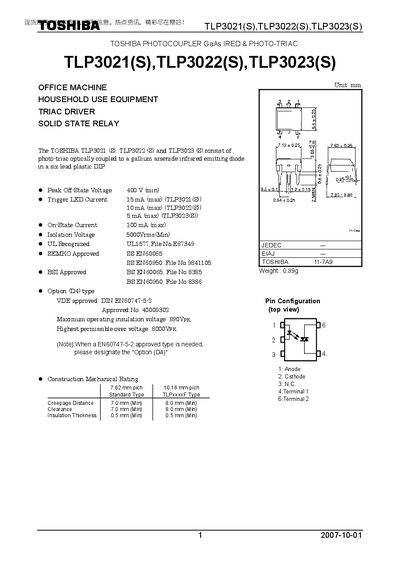

Dinghao provides stock inventory, technical information, encyclopedia information, and hot news. This document describes the features and characteristics of the TLP3021(S), TLP3022(S), and TLP3023(S) products, which are TOSHIBA PHOTOCOUPLER GaAs IRED & PHOTO-TRIAC, including peak off-state voltage, trigger LED current, on-state current, isolation voltage, etc.
The document provides absolute maximum ratings, electrical characteristics, and recommended operating conditions for the Toshiba TLP3021(S), TLP3022(S) and TLP3023(S) solid‑state relay/photocoupler series. It includes data such as peak off‑state voltage, trigger LED current, isolation voltage and power dissipation limits.
Additional sections cover pin configuration, mechanical dimensions, and restrictions on product use, emphasizing compliance with safety standards and proper handling of the GaAs infrared emitting diode.
| Peak Off‑State Voltage | 400 V (min) |
|---|---|
| On‑State Current | 100 mA (max) |
| Isolation Voltage | 5000 Vrms (min) |
| Forward Voltage (typical) | 1.0 V |
| Power Dissipation | 100 mW (max) |
| Package Size | 7.62 mm pitch, 10.16 mm pitch |
The isolation voltage is specified as 5000 Vrms minimum.
Recommended conditions include a supply voltage up to 120 Vac, forward current 15‑25 mA, peak on‑state current up to 1 A, and an operating temperature range of –25 °C to 85 °C.
Typical forward voltage is about 1.0 V at 10 mA.
The device can dissipate up to 100 mW.
