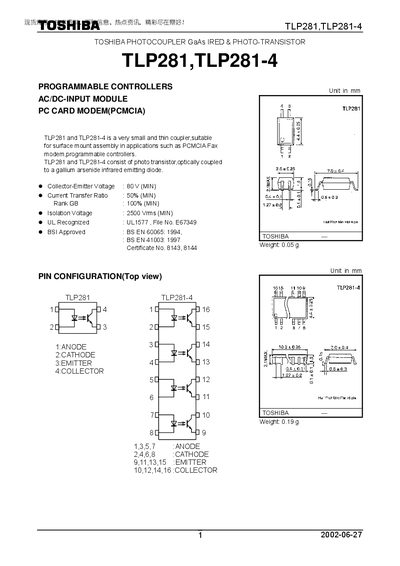

TLP281,TLP281-4 is a very small and thin coupler,suitable for surface mount assembly in applications such as PCMCIA Fax modem,programmable controllers.
The TLP281 and TLP281-4 are miniature GaAs optocouplers designed for surface‑mount applications such as PCMCIA fax modems and programmable controllers. They consist of an infrared emitting diode optically coupled to a photo‑transistor and are supplied in 4‑pin and 16‑pin packages.
Key specifications include a collector‑emitter voltage rating of 80 V, forward current up to 50 mA, isolation voltage of 2500 Vrms, and operation over a temperature range of –55 °C to 100 °C. The document also provides pin assignments, switching times, and safety restrictions for use in electronic equipment.
| Collector‑Emitter Voltage (VCEO) | 80 V (min) |
|---|---|
| Forward Current (IF) | 50 mA |
| Forward Voltage (IF=10 mA) | 1.0 V (typ) |
| Reverse Voltage (VR) | 5 V |
| Junction Temperature (Tj) | 125 °C |
| Operating Temperature Range | -55 °C to 100 °C |
Pin 1 is ANODE, pin 2 is CATHODE, pin 3 is EMITTER, and pin 4 is COLLECTOR.
The maximum forward current is 50 mA.
They operate from –55 °C up to 100 °C.
