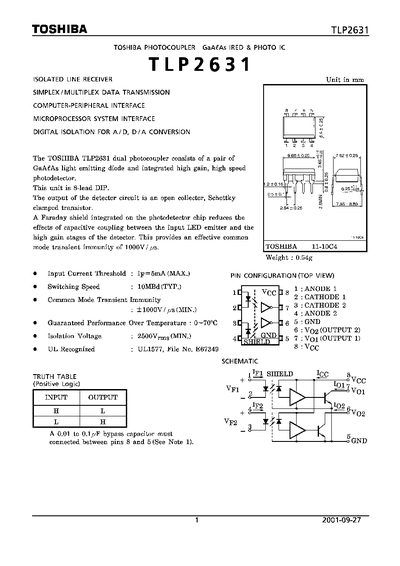

The TLP2631 is a dual GaAs infrared LED and high‑gain photodetector optocoupler offered by Toshiba. It is supplied in an 8‑lead DIP package and is intended for isolated line‑receiver applications such as computer‑peripheral interfaces and digital isolation for A/D, D/A conversion.
The datasheet lists maximum ratings, electrical and switching characteristics, recommended operating conditions, and handling restrictions. Key parameters include a 2500 V rms isolation voltage, 20 mA forward current per channel, and operation over a temperature range of –55 °C to 125 °C.
| Output Current (each channel) | 16 mA |
|---|---|
| Weight | 0.54 g |
