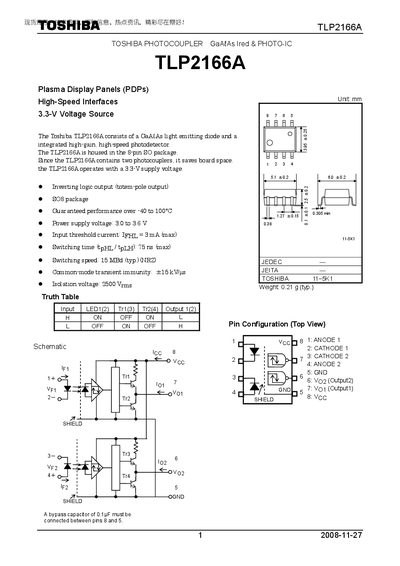

TLP2166A is a photocoupler produced by Toshiba. It consists of a GaAℓAs light emitting diode and an integrated high-gain, high-speed photodetector. The TLP2166A is housed in the 8-pin SO package. Since the TLP2166A contains two photocouplers, it saves board space. The TLP2166A operates with a 3.3V supply voltage.
The Toshiba TLP2166A is an 8‑pin SO optocoupler that combines a GaAs LED with a high‑gain, high‑speed photodetector. It operates from a 3.0 V to 3.6 V supply and provides an inverting logic output with a typical switching time of 75 ns.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical and switching characteristics, as well as packaging, tape‑and‑reel specifications and storage precautions for reliable use in general electronics applications.
| Supply Voltage | 3.0 V – 3.6 V |
|---|---|
| Output Current | 10 mA (max) |
| Operating Temperature Range | -40 °C to 100 °C |
| Package | 8‑pin SO (SO8) |
| Tape Reel Quantity | 2500 devices per reel |
The device requires a supply voltage between 3.0 V and 3.6 V for stable operation.
A standard reel contains 2500 devices.
A 0.1 µF ceramic bypass capacitor must be connected between pins 8 (VCC) and 5 (GND).
