TLP2116 is a TOSHIBA photocoupler suitable for plasma display panels, high-speed interfaces, and factory automation. It consists of GaAℓAs light-emitting diodes and integrated high gain and high-speed photodetectors, providing stable performance and fast switching speed.
The Toshiba TLP2116 is a dual GaAs infrared optocoupler featuring high‑gain, high‑speed photodetectors and a totem‑pole output. The device is supplied in an SO‑8 package and is intended for general electronics applications such as computers, office equipment, industrial robots and home electronics.

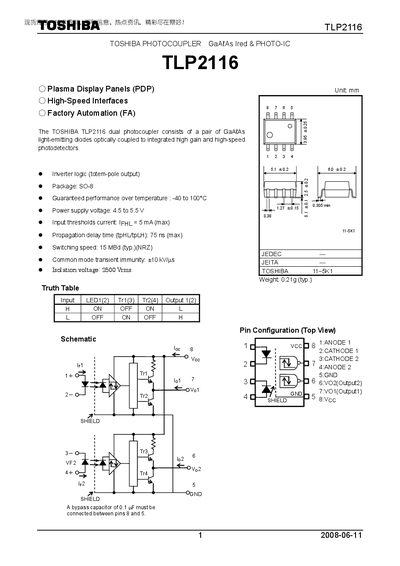

The document provides absolute maximum ratings, recommended operating conditions, detailed electrical and isolation characteristics, switching performance, test circuit examples, and product‑use restrictions. It also includes handling notes and reliability guidance for designers.
| Package | SO-8 |
|---|---|
| Power supply voltage | 4.5 V – 5.5 V |
| Isolation voltage | 2500 Vrms (AC, 1 min) |
| Propagation delay time | 75 ns (max) |
| Switching speed | 15 MBd (typ.) |
| Weight | 0.21 g (typ.) |
| Forward current (per channel) | 20 mA |
The maximum forward current for each channel is 20 mA.
