This document describes the features and characteristics of LM124W-LM224W-LM324W low power quad operational amplifiers, including wide gain bandwidth, input common-mode voltage range, large voltage gain, low supply current, and wide power supply range.
The LM124W, LM224W and LM324W are low‑power quad operational amplifiers with a wide gain bandwidth of 1.3 MHz, large voltage gain of 100 dB, and very low supply current. They operate from a single supply (+3 V to +30 V) or split supplies (+1.5 V to +15 V) and feature ESD protection up to 2000 V.

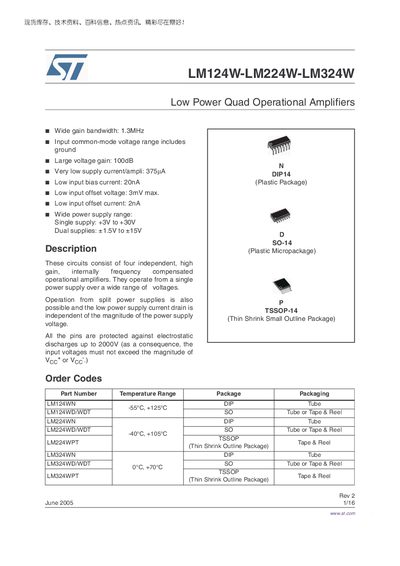

The devices are offered in DIP‑14, TSSOP‑14 and plastic micropackage formats. The datasheet includes pin‑out diagrams, absolute maximum ratings, detailed electrical characteristics such as input offset voltage, bias current, supply current, and gain‑bandwidth product, as well as mechanical dimensions for the packages.
| Gain bandwidth product | 1.3 MHz |
|---|---|
| Supply voltage range (single supply) | +3 V to +30 V |
| Maximum input offset voltage | 3 mV |
The devices operate from a single supply of +3 V to +30 V.
The maximum input offset voltage is 3 mV.
