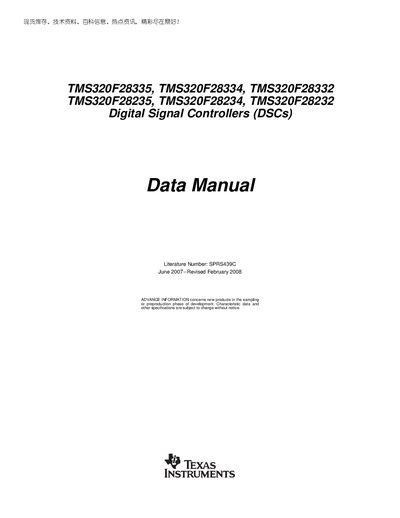

This document is a data manual for TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232 Digital Signal Controllers (DSCs). The manual provides information on the features and functional overview of the products.
The Texas Instruments handbook covers the complete family of TMS320F2833x and TMS320F2823x digital signal controllers. It includes an introduction, hardware feature tables, pin assignments, signal descriptions, and a functional overview of the CPU, memory architecture, and peripheral blocks.
Later sections detail each peripheral module (DMA, timers, PWM, eCAP, eQEP, ADC, McBSP, eCAN, SCD, SPI, I2C, GPIO), register maps, interrupt handling, system control, electrical specifications, and mechanical data such as package dimensions and thermal information.
| Literature Number | SPRS439C |
|---|---|
| Revision | Revised February 2008 |
The literature number is SPRS439C.
It was revised in February 2008.
It covers Texas Instruments Digital Signal Controllers (DSCs).
