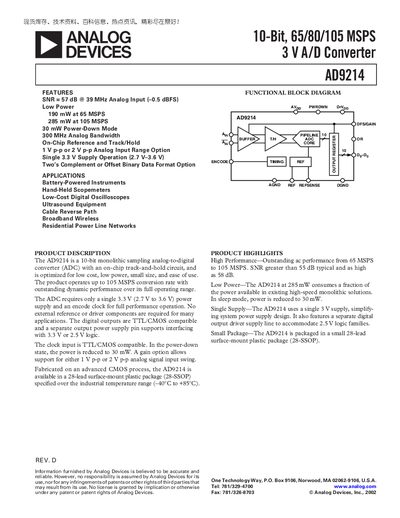

The AD9214 is a 10-bit monolithic sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit, and is optimized for low cost, low power, small size, and ease of use. The product operates up to 105 MSPS, and features 300 MHz analog bandwidth.
The AD9214 is a monolithic 10‑bit analog‑to‑digital converter optimized for low cost, low power and small size. It operates from a single 3.3 V supply (2.7 V‑3.6 V range) and provides optional 1 V p‑p or 2 V p‑p input ranges. The device includes an on‑chip track‑and‑hold circuit, internal reference, and TTL/CMOS‑compatible digital outputs.
Typical applications include battery‑powered instruments, hand‑held scopemeters, low‑cost digital oscilloscopes, ultrasound equipment, broadband wireless and residential power‑line networks. The AD9214 is supplied in a 28‑lead SSOP package and is rated for industrial temperature operation (‑40 °C to +85 °C).
| Power Consumption at 105 MSPS | 285 mW |
|---|---|
| Supply Voltage | 3.3 V (2.7 V‑3.6 V range) |
| Analog Input Range | 1 V p‑p or 2 V p‑p |
| Package | 28‑lead SSOP |
It operates from a single 3.3 V supply, with an allowed range of 2.7 V to 3.6 V.
At 105 MSPS the device consumes about 285 mW.
It is supplied in a 28‑lead shrink small‑outline package (28‑SSOP).
