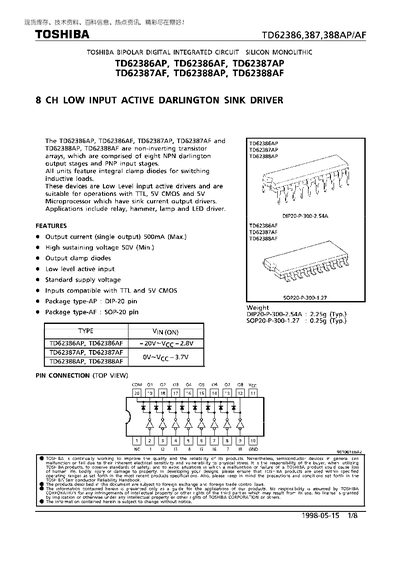

The TD62386, TD62387 and TD62388 AP/AF families are 8‑channel low‑input active Darlington sink driver integrated circuits. They feature NPN output stages, PNP input stages, integral clamp diodes, and are suitable for TTL, 5 V CMOS and 5 V microprocessor applications such as relays, lamps and LED drivers.
The datasheet lists electrical characteristics, recommended operating conditions, maximum ratings, package dimensions (DIP‑20 and SOP‑20) and test circuits. Key parameters include a 500 mA maximum output current per channel, supply voltage 4.5‑5.5 V, output sustaining voltage up to 50 V, and operating temperature range –40 °C to 85 °C.
| Output current (single output) | 500 mA (max) |
|---|---|
| Supply voltage (Vcc) | 4.5 V – 5.5 V |
| Clamp diode reverse voltage | 50 V |
| Operating temperature range | -40 °C – 85 °C |
Each channel can source up to 500 mA of output current.
The recommended supply voltage is between 4.5 V and 5.5 V.
The devices are rated for operation from –40 °C to 85 °C.
