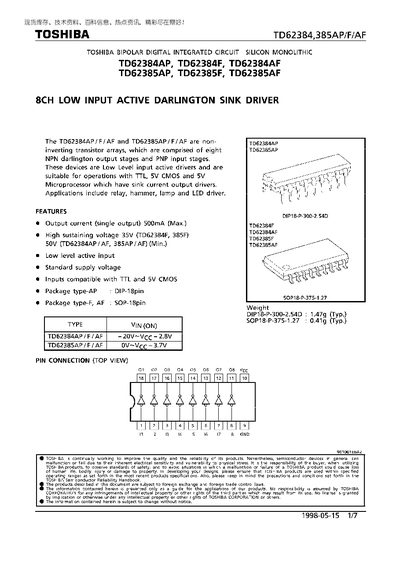

The TD62384 and TD62385 families are 8‑channel low‑input active Darlington sink driver ICs. They are designed for applications such as relays, lamps, LEDs and hammer drivers and accept TTL or 5 V CMOS input levels.
The datasheet provides electrical characteristics, maximum ratings, recommended operating conditions, pin‑out diagrams, and package dimensions for both DIP‑18 and SOP‑18 versions. Typical supply voltage is 5 V and each output can source up to 500 mA continuously.
| Output current (single output) | 500 mA (Max.) |
|---|---|
| High sustaining voltage | 35 V (TD62384F) / 50 V (TD62384AP) |
| Supply voltage (recommended) | 4.5 V – 5.5 V |
| Package type | DIP‑18 (AP) or SOP‑18 (F, AF) |
| Weight (typical) | 1.479 g (DIP‑18) / 0.419 g (SOP‑18) |
| Input compatibility | TTL and 5 V CMOS |
Each output can deliver up to 500 mA continuously.
The devices are offered in a DIP‑18 (AP) package and an SOP‑18 (F, AF) package.
The recommended supply voltage is between 4.5 V and 5.5 V.
Yes, the inputs are compatible with TTL and 5 V CMOS levels.
