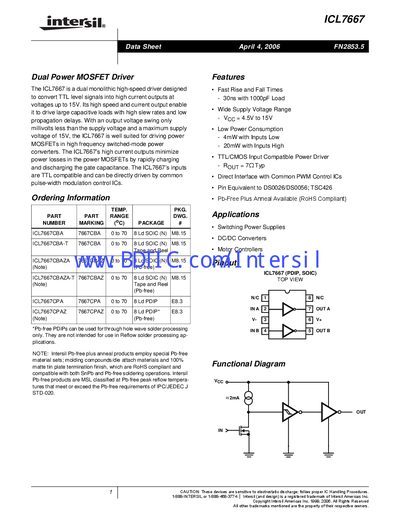

The ICL7667 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its high speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667 is well suited for driving power MOSFETs in high frequency switched-mode power converters. The ICL7667’s high current outputs minimize power losses in the power MOSFETs by rapidly charging and discharging the gate capacitance. The ICL7667’s inputs are TTL compatible and can be directly driven by common pulse-width modulation control ICs.
The ICL7667 is a dual monolithic high‑speed driver that converts TTL level signals into high‑current outputs up to 15 V. It is designed for driving power MOSFET gates in switched‑mode power supplies and other high‑frequency applications.
The document lists key electrical characteristics, absolute maximum ratings, and typical performance curves, and includes application notes on grounding, bypassing, output damping, and driver circuit topologies such as direct MOSFET drive and transformer‑coupled drive.
| Supply Voltage Range | 4.5 V to 15 V |
|---|---|
| Typical Rise Time (1000 pF load) | 30 ns |
| Low Power Consumption (inputs low) | 4 mW |
| Typical Output Resistance | 72 Ω |
| Continuous Output Current Limit | 200 mA |
The device can be powered up to 15 V.
The typical rise time is about 30 ns.
Use a ground plane or separate ground returns for the input and output circuits to minimize common impedance.
The continuous output current is limited to 200 mA.
