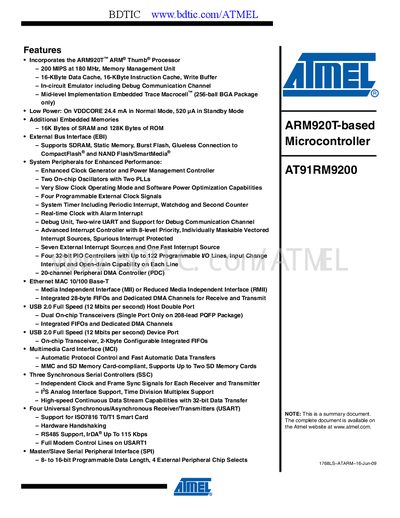

The document describes a single-chip solution that incorporates the ARM920T™ ARM® Thumb® processor, offering high performance and low power consumption. It also includes internal memories, an external bus interface, and various system peripherals that provide support for enhanced performance.
The AT91RM9200 is an ARM920T‑based microcontroller that integrates a rich set of peripherals, including Ethernet, USB, multimedia card, and multiple serial interfaces. It offers low‑power operation with 24.4 mA normal mode current and 520 pA standby current, and provides up to 122 programmable I/O lines.
The device is offered in two package types—a 208‑pin PQFP and a 256‑ball BGA—each supporting different peripheral extensions such as a second USB host transceiver and additional PIO controller features. Detailed pin descriptions, signal definitions, and revision history are included for designers.
| Processor Core | ARM920T ARM Thumb, 200 MIPS at 180 MHz |
|---|---|
| Core Power Consumption | 24.4 mA normal, 520 pA standby (VDDCORE) |
| Embedded Memory | 16 KB SRAM, 128 KB ROM |
| Programmable I/O Lines | Up to 122 lines |
| Peripheral DMA Controller | 20‑channel PDC |
| Timer/Counters | Two 3‑channel, 16‑bit TC units |
| USARTs | Four Universal Synchronous/Asynchronous Receiver/Transmitters |
| Package Options | 208‑pin PQFP (31.2 × 31.2 mm, 0.5 mm pitch) or 256‑ball BGA (15 × 15 mm, 0.8 mm ball pitch) |
| Package Options | 256‑ball BGA (15 × 15 mm, 0.8 mm ball pitch) |
| Ethernet MAC | 10/100 Base‑T |
| USB Interfaces | USB 2.0 Full Speed Host and Device ports |
It incorporates an ARM920T ARM Thumb processor delivering 200 MIPS at 180 MHz.
The device includes 16 KB of SRAM and 128 KB of ROM.
It is offered in a 208‑pin PQFP package (31.2 × 31.2 mm, 0.5 mm pitch) and a 256‑ball BGA package (15 × 15 mm, 0.8 mm ball pitch).
The core draws 24.4 mA in normal mode and 520 pA in standby mode on VDDCORE.
