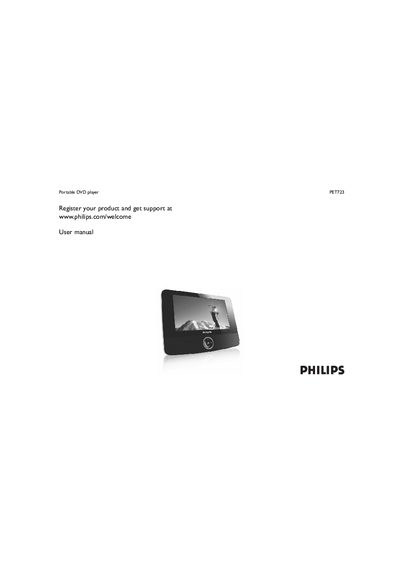

This is a Philips PET723 Portable DVD player user manual, which introduces the product's functions, features and usage methods
This manual covers everything you need to get started with the Philips PET723 portable DVD player, from unpacking and power connections to using the remote control and navigating menus. It also explains battery charging, supported disc formats, and safety precautions.
Detailed sections include functional overview, basic functions, troubleshooting tips, technical specifications, and regulatory information, helping you operate the device safely and efficiently.
| Dimensions | 210 x 158 x 39.5 mm |
|---|---|
| Weight | 0.82 g |
| Power supply input | 100-240V 50/60Hz 0.3A |
| Power supply output | DC 9V 1A |
| Power consumption | 9W |
| Operating temperature range | 0 - 45 °C |
| Laser wavelength | 650 nm |
| Video system | PAL |
| Frequency response | 20 Hz ~ 20 kHz ± 1 dB |
| Signal‑to‑noise ratio | ≥ 80 dB |
| Audio distortion | ≤ ‑80 dB (1 kHz) |
| Channel separation | ≥ 80 dB |
| Dynamic range | ≥ 80 dB |
| Audio out level | 2 V ± 10 % |
| Audio load impedance | 10 kΩ |
| Video out level | 1 Vp‑p ± 20 % |
| Video load impedance | 75 Ω |
Turn the player off and connect it to the AC mains adapter; the charge indicator will turn on.
Check that both plugs of the mains cord are properly connected, verify the outlet has power, and ensure the built‑in battery is not drained.
Inspect the disc for fingerprints and clean it with a soft, lint‑free cloth, wiping from the centre outward.
Visit www.philips.com/welcome and register your product to obtain support.
