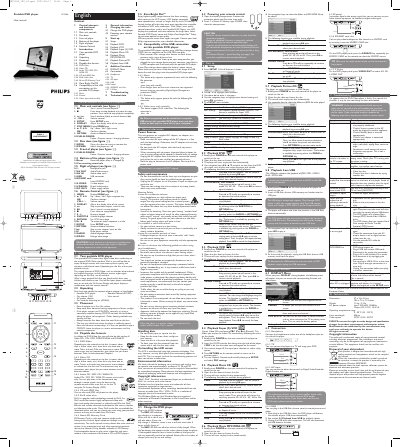

This is a user manual of PET1030 Portable DVD player. It mainly introduces the product's specifications, dimensions, weight, AC power adaptor, operating temperature range, laser wavelength, video system and so on.
This manual covers the essential information for using the Philips PET1030 portable DVD player, including safety warnings, power source options, and environmental disposal guidelines. It also details the technical specifications of the device and explains how to charge the built‑in battery safely.
The guide walks you through playback of DVDs, VCDs, music CDs, MP3/WMA files, and USB media, as well as how to adjust display settings, connect headphones, AV inputs, and SD/MMC cards. Troubleshooting tips for common issues such as no power, distorted picture, or USB detection problems are provided.
| Dimensions | 27 x 19 x 3.8 cm |
|---|---|
| Weight | 1.5 kg / 3.3 lb |
| Power input | 100‑240 V, 50/60 Hz |
| Power output | DC 9‑12 V, 1.8‑2.2 A |
| Operating temperature | 0 °C to 50 °C |
| Laser wavelength | 650 nm |
| Video system | NTSC / PAL / AUTO |
Connect the AC/DC adaptor; the red LED lights while charging and the unit takes about four hours to fully charge when not in use.
The player only supports USB Mass Storage (MSC) devices; it does not work with hard‑disk or MTP‑format USB storage.
