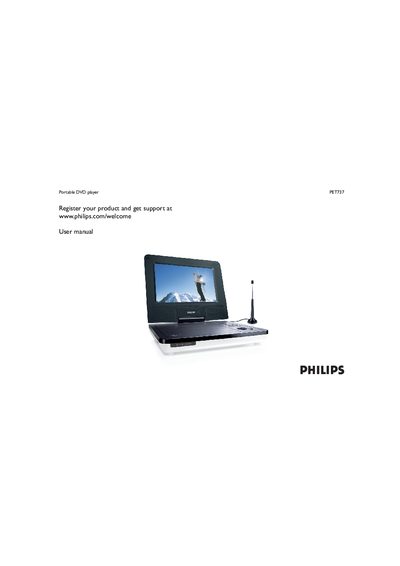

This document provides an overview of the features and functions of the Philips PET737 portable DVD player, including the main unit controls and remote controls. It also encourages users to register their product for support.
This manual covers the functional overview, controls, and connections of the Philips PET737 portable DVD player. It explains how to register the product, use the remote, and navigate menus for DVD, TV, and audio playback.
Safety, battery charging, power‑source options, and detailed troubleshooting steps are included, along with technical specifications such as dimensions, power consumption and laser wavelength.
| Dimensions | 210 x 158 x 39.5 mm |
|---|---|
| Weight | 0.82 g |
| Power supply (input) | 100‑240 V 50/60 Hz 0.3 A |
| Power supply (output) | DC 9 V 1 A |
| Power consumption | 9 W |
| Operating temperature range | 0 °C – 45 °C |
| Laser wavelength | 650 nm |
| Video system | PAL |
| Frequency response | 20 Hz ~ 20 kHz ± 1 dB |
| Signal‑to‑noise ratio | ≥ 80 dB |
| Audio distortion | ≤ -80 dB (1 kHz) |
| Channel separation | ≥ 80 dB |
| Dynamic range | ≥ 80 dB |
| Audio output level | 2 V ± 10 % (load 10 kΩ) |
| Video output level | 1 Vp‑p ± 20 % (load 75 Ω) |
Connect the DVD player directly to the AC mains; the charge indicator will turn on and the battery will charge.
The unit can be powered by the supplied AC adapter (100‑240 V, 0.3 A) or a 12 V car adaptor.
