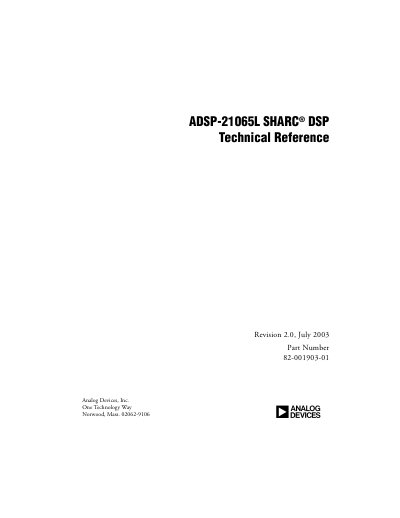

Analog Devices ADSP-21065L SHARC DSP Technical Reference

About this manual

The ADSP-21065L SHARC DSP Technical Reference provides detailed information for developers and engineers working with the SHARC DSP architecture. It includes instruction set descriptions, compute and move operations, program flow control, immediate move instructions, and miscellaneous functions.

The document also describes numeric formats, JTAG test access port details, system and control registers, latency effects, and built‑in self‑test instructions. It serves as a comprehensive programming guide for implementing and optimizing code on the ADSP-21065L processor.

What's inside

• Preface
• Instruction Set Reference
• Compute and Move Instructions
• Program Flow Control
• Immediate Move Instructions
• Miscellaneous Instructions
• Numeric Formats
• JTAG Test Access Port
• Control and Status Registers

Specifications

Frequently asked questions

What is the part number of this technical reference?

The part number is 82-001903-01.

When was the ADSP-21065L Technical Reference revised?

It was revised to version 2.0 in July 2003.
