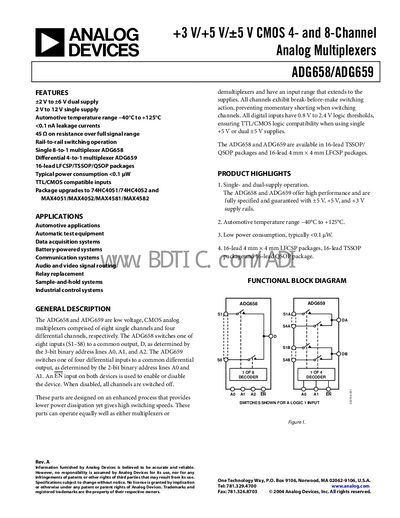

ADG658/ADG659 are low voltage, CMOS analog multiplexers comprised of single 8-to-1 and differential 4-to-1 arrays, available in 16-lead LFCSP/TSSOP/QSOP packages.
The ADG658 (single 8‑to‑1 multiplexer) and ADG659 (differential 4‑to‑1 multiplexer) are CMOS analog switches that route analog signals based on binary address lines. They support both dual‑supply (+2 V to +6 V) and single‑supply (2 V to 12 V) operation, feature rail‑to‑rail switching, and include an enable pin to turn all channels off.
Both devices are offered in 16‑lead TSSOP, QSOP, and LFCSP packages. Key specifications include a typical on‑resistance of 45 Ω, leakage currents below a few nanometers, power consumption under 0.1 pW, and an automotive temperature range of –40 °C to +125 °C. Applications span automotive, data acquisition, battery‑powered systems, and industrial control.
| Operating temperature range | -40 °C to +125 °C |
|---|---|
| Typical power consumption | <0.1 pW |
| On‑resistance (Ron) typical | 45 Ω typ |
| Bandwidth (ADG658) | 210 MHz typ |
They operate from –40 °C to +125 °C.
The typical on‑resistance is 45 Ω.
Typical power consumption is less than 0.1 pW.
They support dual‑supply +2 V to +6 V and single‑supply 2 V to 12 V operation.
