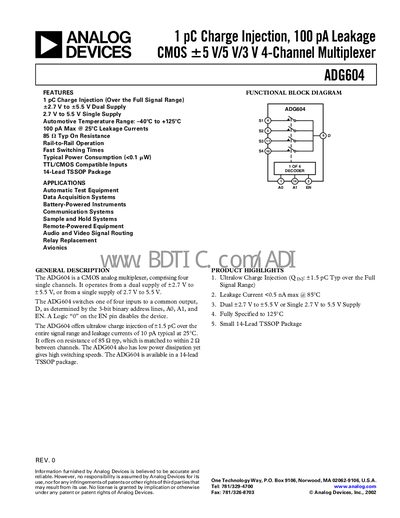

The ADG604 is a CMOS analog multiplexer, comprising four single channels. It operates from a dual supply of ±2.7 V to ±5.5 V, or from a single supply of 2.7 V to 5.5 V. The ADG604 switches one of four inputs to a common output, selected by the 10-bit address decoder A1A0. The ADG604 features 1 pC charge injection (over the full signal range) and 100 pA of leakage current. Its feature list also includes: automotive temperature range of -40°C to +125°C, typical 85Ω on resistance, fast switching times (typical power consumption of less than 0.1 μW), TTL/CMOS compatible inputs and a 14-lead TSSOP package.
The ADG604 is a 4‑channel CMOS analog multiplexer with ultralow charge injection (1.5 pC typ) and very low leakage currents (<0.5 nA max @ 85 °C). It operates from a dual supply of +2.7 V to +5.5 V or a single supply of 2.7 V to 5.5 V, and is qualified for automotive temperature ranges from –40 °C to +125 °C.
The datasheet includes detailed electrical specifications, absolute maximum ratings, pin configuration, ordering information, and typical performance graphs such as on‑resistance versus voltage and frequency response. It is intended for designers of automatic test equipment, data‑acquisition systems, battery‑powered instruments, and other signal‑routing applications.
| Leakage Current (max @85 °C) | <0.5 nA |
|---|---|
| Supply Voltage | Dual +2.7 V to +5.5 V or Single 2.7 V to 5.5 V |
| Operating Temperature Range | -40 °C to +125 °C |
It can be powered from a dual supply of +2.7 V to +5.5 V or from a single supply of 2.7 V to 5.5 V.
The leakage current is limited to less than 0.5 nA at 85 °C.
It is qualified for automotive temperature ranges from –40 °C to +125 °C.
