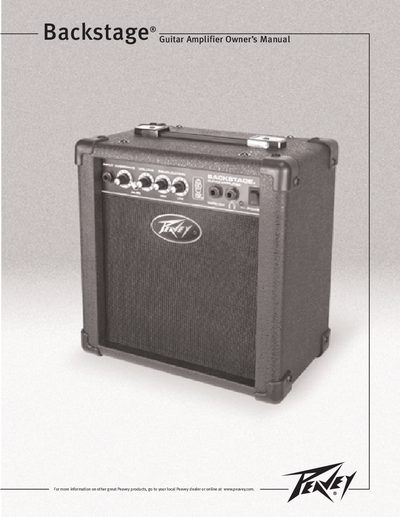

Backstage is a Peavey brand guitar amplifier
The Backstage guitar amplifier manual provides essential safety instructions, including warnings about electrical shock, keeping the unit dry, and using qualified service personnel. It also outlines proper power‑line voltage, grounding plug requirements, and precautions for moving the unit on a cart or rack.
The guide describes the amplifier’s features—built‑in headphone jack, overdrive control, tape/CD input, EQ controls—and lists technical specifications such as rated power, input levels, dimensions, and weight. A warranty section explains coverage for defects in material and workmanship for U.S. and Canadian purchases.
| Rated power | 10 Watts RMS into 8 Ω @ 10% THD, 1 kHz, 120 VAC |
|---|---|
| Power consumption (Domestic) | 26 W, 60 Hz, 120 VAC |
| Power consumption (Export) | 26 W, 50/60 Hz, 230‑240 VAC |
| Clean channel nominal input level | -18 dB, 125 mV RMS |
| Overdrive channel nominal input level | -52 dB, 2.5 mV RMS |
| Tape/CD input impedance | High Z, 22 kΩ |
| Headphone output nominal level | 25 mV into 4 Ω (speaker disables) |
| Dimensions (H × W × D) | 11.00" × 11.20" × 6.75" (280 mm × 283 mm × 170 mm) |
| Weight | 11 lb (5 kg) |
The amplifier delivers 10 W RMS into 8 Ω at 10 % THD, measured at 1 kHz with a 120 VAC line.
When headphones are plugged into the headphone jack, the internal speaker is automatically turned off.
Do not open the enclosure, keep the unit away from water, and have any servicing performed by qualified personnel.
The warranty covers defects in material and workmanship for Peavey products purchased and serviced in the U.S.A. and Canada.
