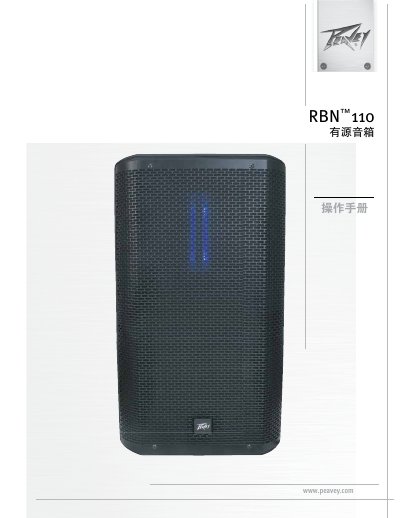

The Peavey RBN110 active speaker operation manual provides setup, safety, wiring, DSP controls and specifications for professional audio use.
This manual introduces the Peavey RBN110 active speaker, a dual‑amplifier system with a 10" low‑frequency driver and a Peavey RD™2.6 ribbon tweeter. It describes the speaker’s features, including 550 W peak low‑frequency output, 500 W peak high‑frequency output, DSP‑based crossover and EQ, and a 125 dB SPL capability.
The guide covers safety warnings, power and fuse selection, input and output connections, DSP menu operation, installation and mounting procedures, and detailed technical specifications. It also provides troubleshooting tips and warranty information for proper use and maintenance. This manual is written in Chinese.
| Peak low‑frequency power | 550 W |
|---|---|
| Peak high‑frequency power | 500 W |
| Maximum SPL | 125 dB |
| Frequency response | 73 Hz – 20 kHz |
| Weight | 16.8 kg (37 lb) |
| Dimensions (H × W × D) | 56 cm × 31.4 cm × 30.7 cm |
Use a 5 × 20 mm slow‑blow fuse rated 10 A/250 V, conforming to the international T10AH category.
Pressing the GND LIFT switch disconnects the ground shield from the power amp to reduce low‑frequency noise.
