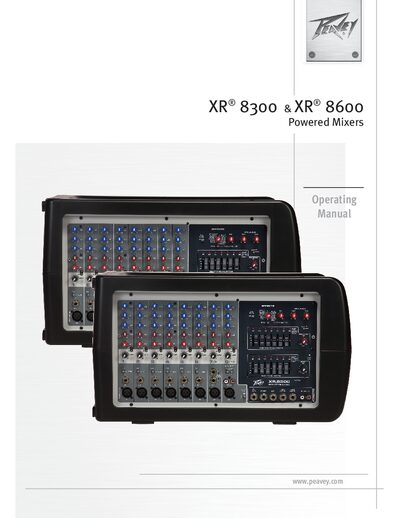

The Peavey XR 8300 and XR 8600 powered mixers operating manual provides safety instructions, setup steps, control descriptions, and specifications.
This manual begins with extensive safety warnings, including cautions about electric shock, moisture, and hearing protection, and advises users to keep the instructions for future reference. It also explains proper ventilation clearance and the need for qualified service personnel.
The remainder of the guide details the mixers' features—mic preamps, line inputs, EQ sections, digital effects, power‑amp modes, speaker protection, and more—while describing each front‑panel control and providing the technical specifications for both the XR 8300 (300 W) and XR 8600 (600 W) models.
| Mic preamps | 8 improved, low‑noise |
|---|---|
| Line inputs | 10 |
| Channel EQ | 3‑band equalization on each channel |
| Power amplifiers (XR 8300) | Dual 300 W per channel |
| Power amplifiers (XR 8600) | Dual 600 W per channel |
| Phantom power | 48 V |
| Ventilation clearance | 6 in (15.5 cm) on all sides |
Allow a 6‑inch (15.5 cm) clearance on all sides of the unit.
The XR 8300 contains dual 300 W per‑channel internal power amplifiers.
The XR 8600 contains dual 600 W per‑channel internal power amplifiers.
