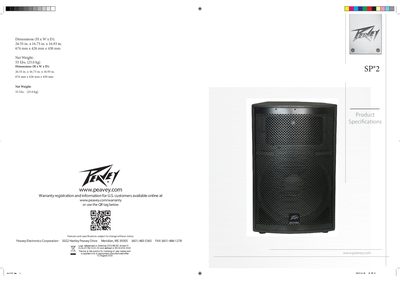

The Peavey SP®2 speaker system specifications include dimensions, weight, power handling, frequency response, and rigging details.
The SP®2 is a two‑way, full‑range speaker system featuring a 15" Black Widow® BWX woofer with a long‑throw voice coil and a 2" RX™22CT titanium‑diaphragm compression driver mounted in a patented Quadratic Throat Constant Directivity Waveguide. The trapezoidal plywood enclosure is finished with textured black polyurethane and includes a full‑length perforated steel grille, a built‑in stand‑mount adapter, and multiple fly points for overhead rigging.
Technical specifications cover dimensions (26.53" × 16.75" × 16.93"), net weight (55 lb), nominal impedance (8 Ω), power handling (500 W continuous, 1 000 W program, 2 000 W peak), frequency response (64 Hz – 17 kHz ± 3 dB), and input connections (two 1/4" phone jacks, one four‑pin twist‑lock connector, and a Neutrik NL4 Speakon switching jack for bi‑amp). Rigging hardware requirements and safety guidelines are also provided.
| Dimensions (H x W x D) | 26.53 in x 16.75 in x 16.93 in |
|---|---|
| Net Weight | 55 lbs (25.0 kg) |
| Nominal Impedance | 8.0 Ω |
| Power Handling (Full Range) | 500 W continuous, 1 000 W program, 2 000 W peak |
| Frequency Response | 64 Hz – 17 kHz (±3 dB) |
| Radiation Angle | 100° horizontal × 50° vertical |
The speaker offers two 1/4" phone jacks, one four‑pin twist‑lock connector, and a Neutrik NL4 Speakon switching jack for bi‑amp operation.
The SP®2 covers 64 Hz to 17 kHz with a tolerance of ±3 dB.
