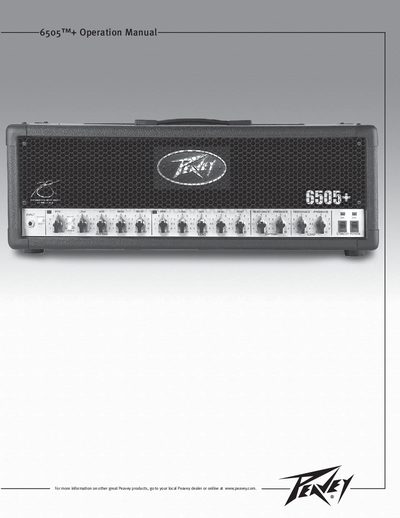

Operation Manual, introduce the use of 6505™+ product
This manual begins with extensive safety instructions, warning users about dangerous voltages, proper grounding, and the need for qualified service personnel. It also details environmental precautions such as keeping the unit away from moisture and high noise levels.
The remainder of the guide describes the amplifier’s features—including two tube channels, separate EQ, resonance and presence controls, and a footswitch‑controlled crunch function—followed by a detailed rear‑panel layout covering power input, fuse replacement, ground switch settings, speaker impedance options, and connector types.
| Output Power | 120 watts |
|---|---|
| Speaker Impedance Options | 4, 8, 16 Ω |
| Fuse Rating | 5 A |
| Number of Tube Channels | 2 |
| Number of Speaker Outputs | Two parallel 1/4" speaker output jacks |
A 5 A fuse of the same type and value should be used.
The amplifier delivers 120 watts of output power.
The unit can be set to 4 Ω, 8 Ω, or 16 Ω speaker impedance.
It has two distinct tube channels.
