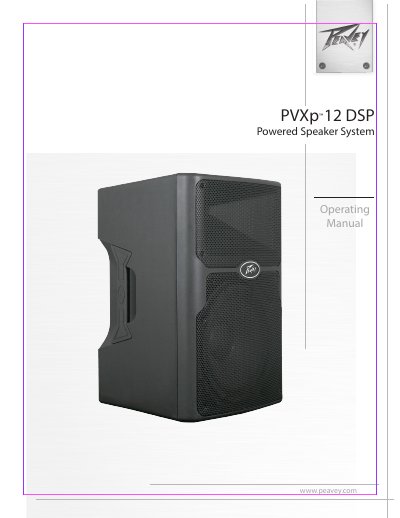

Operating manual with setup, safety, operation instructions and specifications for the Peavey PVXp™ 12 DSP powered speaker system.
The PVXp™ 12 DSP is a two‑way bi‑amplified powered speaker featuring a 12" woofer with a 2‑3/8" voice coil, a 50 oz magnet, and an RX14 compression driver with a 1.4" titanium diaphragm. It delivers up to 830 W peak dynamic power, with 630 W for the woofer and 200 W for the tweeter, and includes DSP processing (64‑bit double‑precision, 48 kHz/24‑bit) for precise sound control.
The manual covers safety warnings, power‑up procedures, input and output connections, EQ presets, level control, stand‑mount installation, and troubleshooting. It also provides detailed specifications, fuse replacement instructions, and guidance on preventing interference and protecting hearing.
| Total peak dynamic power | 830 W |
|---|---|
| Woofer peak power | 630 W |
| Tweeter peak power | 200 W |
| Woofer size | 12" with 2‑3/8" voice coil |
| Magnet weight | 50 oz |
| Compression driver diaphragm | 1.4" titanium |
| DSP processing | 64‑bit double‑precision |
| DSP sampling rate | 48 kHz / 24‑bit |
| Unit weight | 43 lb (19.5 kg) |
| Fuse type | 5 × 20 mm 250 V |
| Power supply voltage | 100‑240 V, 50/60 Hz |
The PVXp™ 12 DSP can reach SPL levels in excess of 128 dB at 1 m.
Use the Push‑to‑Select knob to select an EQ mode and then rotate the knob to boost or cut treble or bass in 1 dB steps up to ±6 dB.
