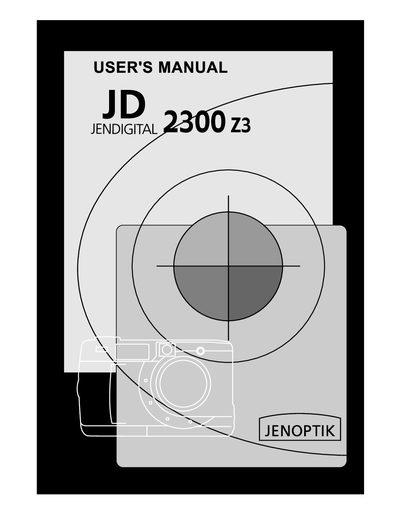

This is a JENOPTIK JD 2300 z3 camera user manual
This manual covers safe handling, battery installation, basic camera functions such as taking pictures, playback, flash operation, and connecting the camera to a PC. It also includes a quick‑reference guide, troubleshooting tips, and warranty information.
Technical details are listed, including dimensions, weight, operating temperature, power options, video output, and system requirements for Windows and Mac computers. The appendix provides driver installation steps and software information.
| Dimensions (W x H x D) | 116 x 73 x 62 mm |
|---|---|
| Weight | Approx. 280 g (9.88 oz) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Battery type | AA‑size alkaline or Ni‑MH, 4 cells |
| Video output | Composite video, NTSC/PAL selectable |
| PC interface | USB port |
| Drive mode | Single shot, sequence shot, self‑timer shot |
| Flash modes | Autoflash, Fill‑flash, Flash cancel, Red‑eye reduction |
The camera uses four AA‑size alkaline batteries or four AA‑size Ni‑MH rechargeable batteries.
It can operate from 0 °C up to 40 °C (32 °F to 104 °F).
Connect the camera via the USB port and install the supplied driver software; the manual lists Windows and Mac system requirements.
The camera measures 116 × 73 × 62 mm and weighs approximately 280 g without batteries or CF card.
