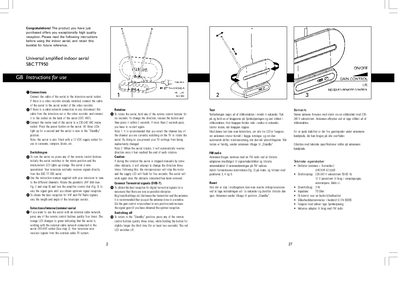

This file is the user manual for the SBC TT 950 aerial. The aerial can receive UHF, VHF and FM signals. The aerial can be connected to a television or video recorder, or it can be connected to an external cable network. The user manual explains how to connect the aerial, how to turn on the aerial, and how to select the internal/external aerial.
This manual provides step‑by‑step instructions for connecting the Universal SBC TT950 indoor antenna to a TV, video recorder, or external cable network, and for powering the unit from a 230‑240 VAC outlet or a 12 VDC source for use in caravans and boats. It also describes how to switch the antenna on, select internal or external mode, and adjust the gain control.
Additional sections cover rotating the antenna, performing the built‑in test function, using the antenna with FM radios, resetting the microprocessor, and safety precautions. Technical specifications such as gain, power supply, and impedance are listed at the end of the document.
| Gain (antenna + amplifier) | UHF + VHF 42 + 2 dB |
|---|---|
| Impedance | 75 Ω |
Press any remote‑control button quickly four times; the orange LED turns green indicating external mode.
The antenna complies with EN 60065 safety requirements.
