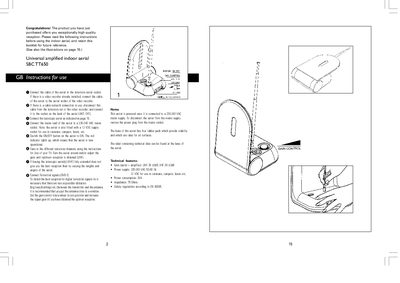

The document provides instructions for using a universal amplified indoor aerial called SBC TT650. The aerial can be connected to a television, video recorder, or cable network and offers high-quality reception.
This manual explains how to install and connect the Universal SBCTT650 indoor amplified antenna. It covers connecting the antenna cable to a TV or video recorder, attaching the mains lead to a 230‑240 VAC socket (or 12 VDC for caravans, campers, and boats), and activating the unit with the ON/OFF switch.
The guide also describes how to tune the antenna for optimal UHF/VHF reception using the gain‑control wheel, advises on placement near a window and avoiding obstacles, and lists safety information and technical specifications such as gain, power consumption, and impedance.
| Gain (UHF) | 39 + 3 dB |
|---|---|
| Gain (VHF) | 39 + 3 dB |
| Power consumption | 3 VA |
| Safety standard | EN 60065 |
Connect the mains lead of the aerial to a 230‑240 VAC mains socket; the antenna also has a 12 VDC connector for use in caravans, campers, and boats.
Set the gain‑control rotary wheel to zero, then increase the gain while rotating the antenna until optimal UHF/VHF reception is achieved.
