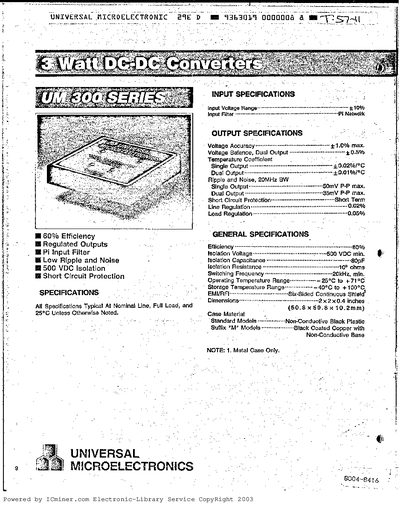

The UM300 Series from Universal Microelectronics is a family of regulated DC‑DC converter modules offering up to 60 % efficiency and 500 VDC isolation. The series includes a range of input and output voltage options, with both single‑output and dual‑output versions.
Key data include a minimum switching frequency of 20 kHz, ripple and noise performance measured over a 20 MHz bandwidth, and compact dimensions of 2 × 2 × 0.4 in (50.8 × 50.8 × 10.2 mm). Pin‑out options are provided in standard and alternate configurations, the latter selectable by adding an “S” suffix to the model number.
| Efficiency | 60 % |
|---|---|
| Isolation Voltage | 500 VDC |
| Switching Frequency (minimum) | 20 kHz |
| Ripple and Noise (20 MHz BW) | Specified in data sheet |
| Temperature Coefficient (single output) | 0.02 %/°C |
| Module Dimensions | 2 × 2 × 0.4 in (50.8 × 50.8 × 10.2 mm) |
The UM300 series provides 500 VDC isolation.
The minimum switching frequency is 20 kHz.
Each module measures 2 × 2 × 0.4 inches (50.8 × 50.8 × 10.2 mm).
Add an “S” suffix to the standard model number (e.g., UM301S).
