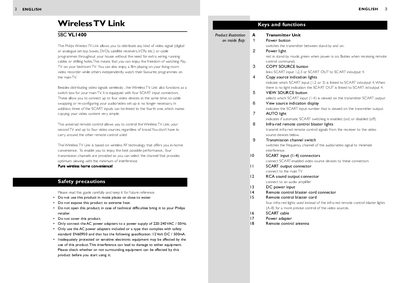

The document introduces a product called Philips Wireless TV Link SBC VL1400. This product allows you to distribute any kind of video signal throughout your house without the need for extra wiring or drilling holes. In addition to wirelessly distributing video signals, the product also functions as a switch box.
The Wireless TV Link lets you distribute video signals from up to four SCART‑connected sources to a main TV and a secondary TV without extra wiring. It also functions as a switch box for the main TV and includes a universal remote that can control up to five devices.
The manual covers safety precautions, power requirements, detailed wiring, channel selection, remote‑control blaster setup, and problem‑solving tips, along with technical specifications such as dimensions, power consumption, operating range, and RF parameters.
| Power adapter (DC) | 12 V DC / 500 mA |
|---|---|
| Operating consumption | 6 W (both units) |
| Transmitter dimensions | 270 mm (W) × 146 mm (D) × 61 mm (H) |
| Number of transmission channels | 4 |
| Carrier frequency (RF) | 433.92 MHz |
| Operating range (open air) | Up to 100 m |
| IR reception range | Up to 6 m |
The device offers four selectable transmission channels.
You must use a 12 V DC, 500 mA adapter that complies with EN60950.
The system can transmit up to 100 metres in open air.
The transmitter unit has four SCART input connectors.
