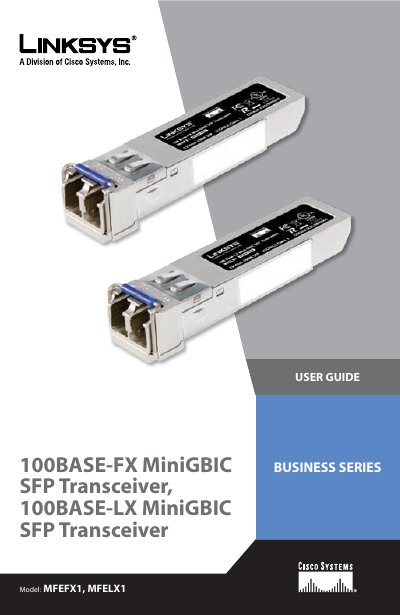

This manual introduces the features and characteristics of the 100BASE-FX MiniGBIC SFP Transceiver and 100BASE-LX MiniGBIC SFP Transceiver, and provides instructions for installing, using, and maintaining the product.
This guide explains how to connect, install and remove the Linksys MiniGBIC SFP transceiver modules (MFEFX1 and MFELX1). It includes safety warnings, step‑by‑step procedures, and diagrams for proper handling of the hot‑swappable optical modules.
Additional sections cover detailed technical specifications, a list of compatible Linksys switches, warranty terms, regulatory statements and contact information for support.
| MFEFX1 Power | 1W |
|---|---|
| MFELX1 Power | 1W |
| MFEFX1 Typical Tx Wavelength | 1310 nm |
| MFELX1 Typical Tx Wavelength | 1310 nm |
| Operating Temperature | 0 to 70 °C |
| Dimensions | 0.53" x 0.33" x 2.19" (13.4 x 8.5 x 55.7 mm) |
| Average Output Power (MFEFX1) | -20 dBm (min) to -14 dBm (max) |
Insert the MiniGBIC SFP module with the printed side up and the rubber port cap facing out, then push it into the port.
Pull the module’s bail latch down, then pull the module out of the MiniGBIC port.
Linksys provides a one‑year limited warranty for the MiniGBIC SFP transceiver.
The transceivers operate from 0 °C to 70 °C.
