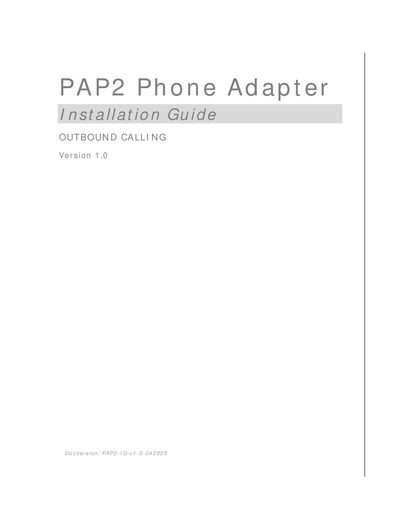

Linksys PAP2 Phone Adapter Installation Guide

About this manual

The PAP2 is a 2‑port FXS phone adapter that lets you connect two analog phones to a VoIP network. It includes Ethernet (RJ‑45) and analog (RJ‑11) connectors and runs firmware version 2.0.10.

This guide walks you through accessing the device’s web interface, configuring DHCP or static IP settings, setting SIP and codec options, customizing line‑specific parameters, and adjusting the dial plan for your region. It also lists menu options and provides troubleshooting notes for common configuration tasks.

What's inside

• Introduction
• Adapter Description
• Connectors and Pinouts
• Provisioning
• Line‑Specific Configuration
• Audio Configuration
• Dial Plan
• Menu Options

Specifications

Frequently asked questions

How do I access the PAP2 web interface?

Enter the PAP2’s IP address in a web browser’s address bar, then click the Admin Login link and the advanced configuration link.

How can I enable or disable DHCP on the PAP2?

In the System tab, use the DHCP drop‑down menu in the Internet Connection Type section and select Yes or No.

What dial‑plan settings are required for US calls?

Set the dial plan to start with ‘1’ for US calls (and ‘011’ for non‑US calls) in the Dial Plan section.
